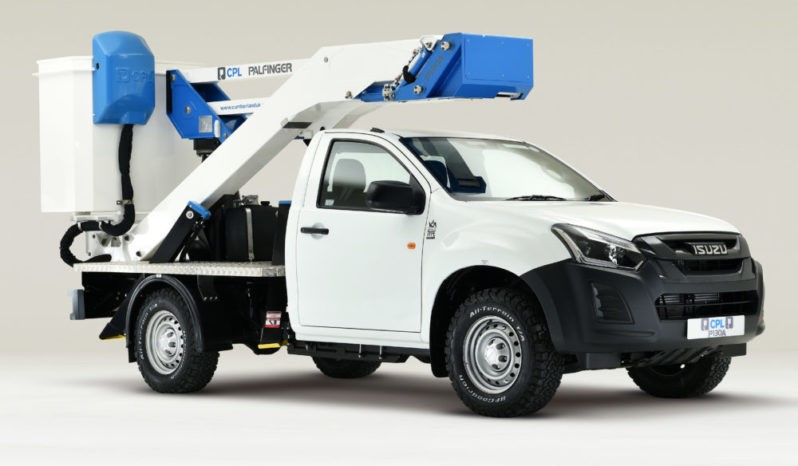

Boom Lift – Isuzu PickUp Cherry Picker
Cherry Picker mounted on the all new Isuzu D-Max. All the access advantages of a quality pick-up with a no compromise cherry picker professionally mounted on the back.
Contact Our Hire Desk
Brand* Isuzu
Description
Overview
Cherry Picker mounted on the all new Isuzu D-Max. All the access advantages of a quality pick-up with a no
compromise cherry picker professionally mounted on the back.
- Self levelling basket with manual trim
- 24 degree departure angle
- Fully hydraulic controls fitted in the basket and on the deck.
- Knuckle remains within the confines of the vehicle envelope

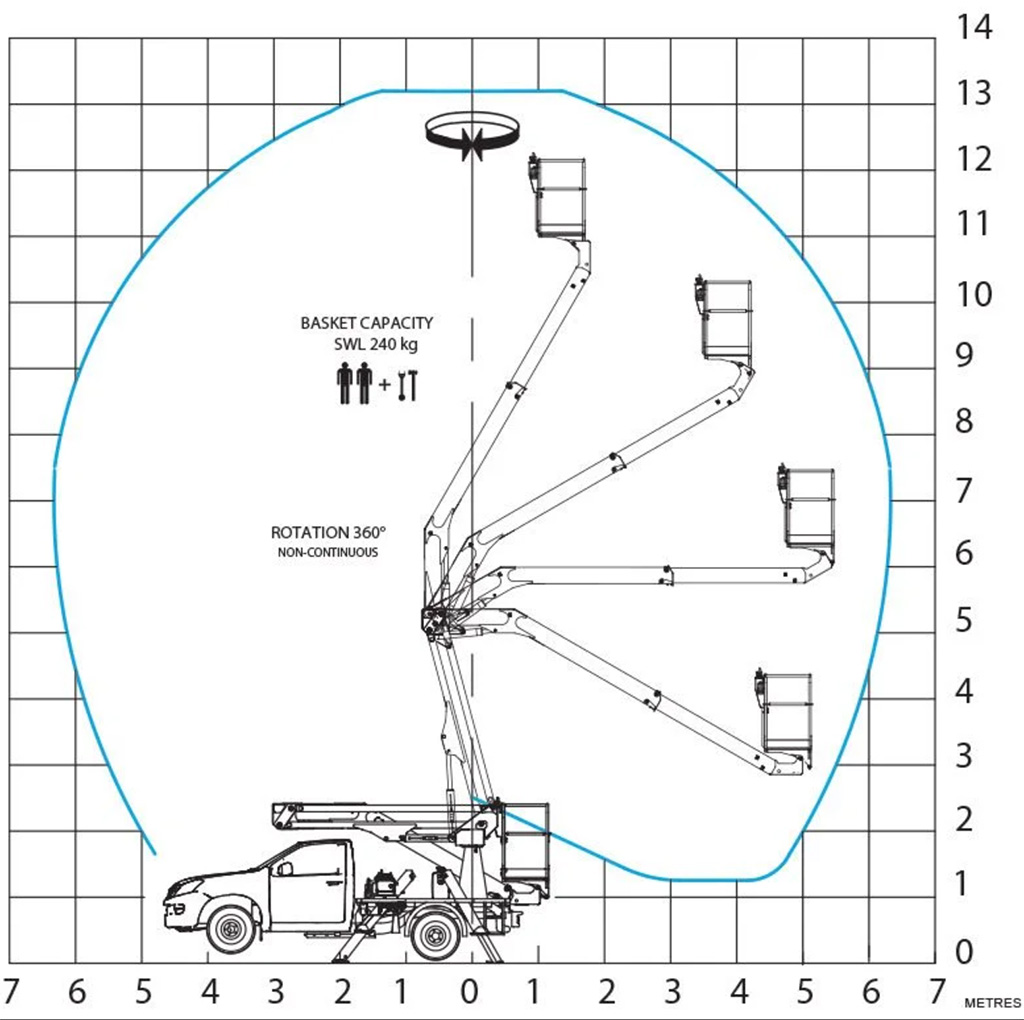

- Max working height 13.1m
- Basket floor height 11.5m
- Max working outreach 6.2m
- Aerial part rotation 360°
- Basket max load capacity 240kg
- Basket dimension 610mm x 1067mm x 1220mm
- Hydraulic controls
- Stabilization A+A
- Weight 3.5t GVW minimum
