Material Lift – TM12 Snorkel Telescopic Electric

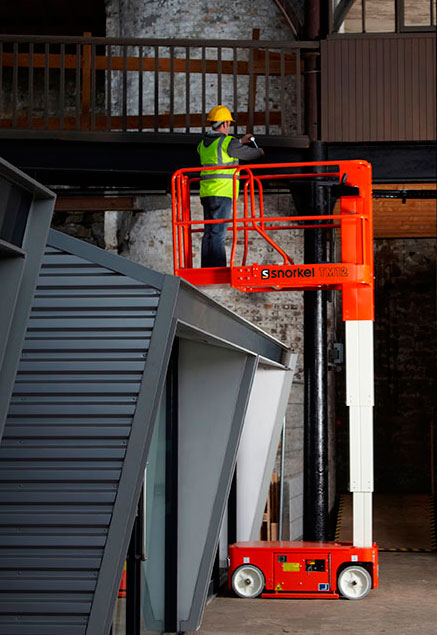

The Snorkel TM12 is the original self-propelled mast lift. Recently enhanced with hydraulic powered descent and a 0.5m roll-out deck extension as standard, the TM12 continues to set the standard in low-level elevating work platforms. A versatile and compact self-propelled mast lift – perfect for maintenance duties as it fits easily through a single doorway and can be carried in passenger elevators.
Contact Our Hire Desk
Description
The Snorkel TM12 is the original self-propelled mast lift. Recently enhanced with hydraulic
powered descent and a 0.5m roll-out deck extension as standard, the TM12 continues to set the standard in
low-level elevating work platforms. A versatile and compact self-propelled mast lift – perfect for
maintenance duties as it fits easily through a single doorway and can be carried in passenger elevators.
- Roll-out deck extension
- Hydraulically powered descent
- Proportional controls
- Saloon-door style entry gates
- Descent & tilt alarms
- Emergency lowering at chassis controls
- 2 person + equipment capacity indoor
- 1 person + equipment capacity outdoor
- Non-marking rubber tyres
- Crane lift points
- Horn
- Hour meter & on-board diagnostics display
- Selectable motion alarm
- Integrated battery charger 90V-240V 25A
- 2 year parts & labour, 5 year structural warranty
| Max Working Height | 5.6m |
|---|---|
| Max Platform Height | 3.6m |
| Platform Size (stowed) | 0.74m x 0.96m |
| Platform Size (extended) | 0.74m x 1.46m |
| Extension Deck Length | 0.5m |
| Overall Width | 0.76m |
| Overall Length | 1.34m |
| Stowed Height | 1.62m |
| Ground Clearance | 76mm |
| Platform Capacity (SWL) | 227kg |
| Max Drive Height | 3.6m |
| Max Wind Speed | 12.5m/s |
| Max Drive Speed (stowed) | 3.2km/h |
| Max Drive Speed (elevated) | 0.43 km/h |
| Raise/Lower Time | 16/19 seconds |
| Gradeability | 25% |
| Max Operating Slope (side to side) | 2º |
| Max Operating Slope (front to back) | 2º |

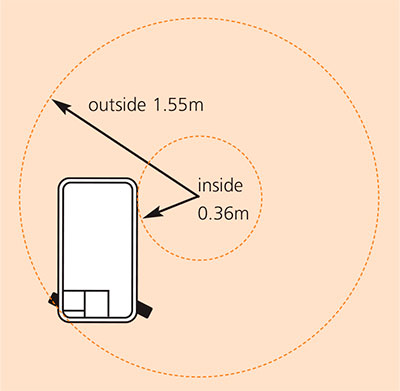

| Inside Turning Radius | 0.36m |
| Outside Turning Radius | 1.55m |
| Tyres | 279mm. non-marking rubber |
| Parking Brake | 2 wheel, spring-applied, hydraulically-released with manual overdrive |
| Drive System | dual front hydraulic motors |
| Controls | proportional |
| Power Source | 24V 4hp DC electric motor 4-220 Ah batteries |
| Battery Charger | 18 amp |
| Weight | 910kg |
