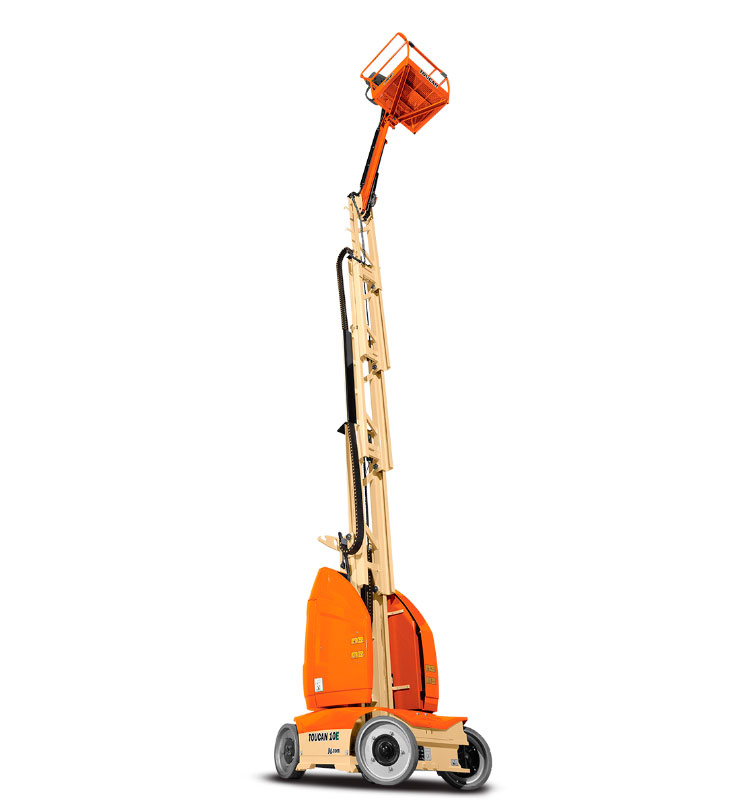

Material/Mast Boom Lift – JLG Toucan 10 Electric

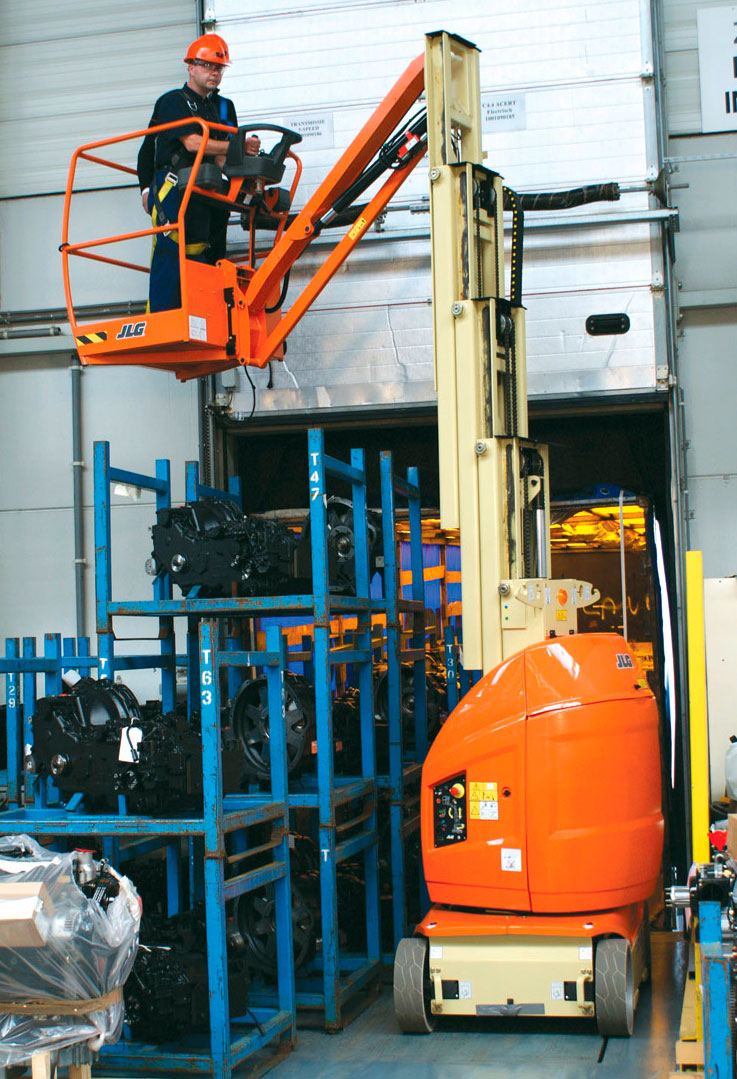

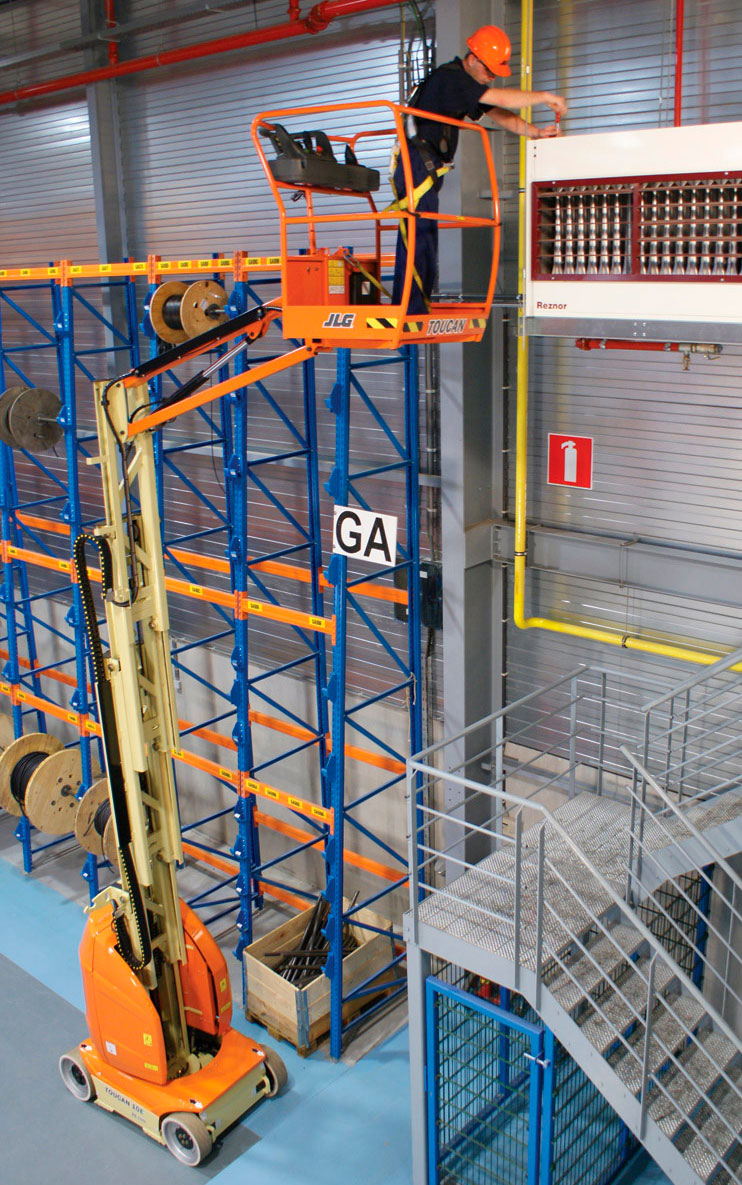

This machine can access places inside buildings due to its compact size and powerful electric motor.
BENEFITS
- Electric power for zero emissions and near-silent running indoors.
- No waiting with immediate-response AC drive motors for greater torque and efficiency.
- Get into more places with compact dimensions and precise control system.
- Extended reach and up-and-over height with heavy duty forklift-style mast and versatile articulating jib.
Brand* JLG
Description
Toucan JLG 10E Mast Boom Lift
This machine can access places inside buildings due to its compact size and powerful electric motor.
BENEFITS
- Electric power for zero emissions and near-silent running indoors.
- No waiting with immediate-response AC drive motors for greater torque and efficiency.
- Get into more places with compact dimensions and precise control system.
- Extended reach and up-and-over height with heavy duty forklift-style mast and versatile articulating jib.

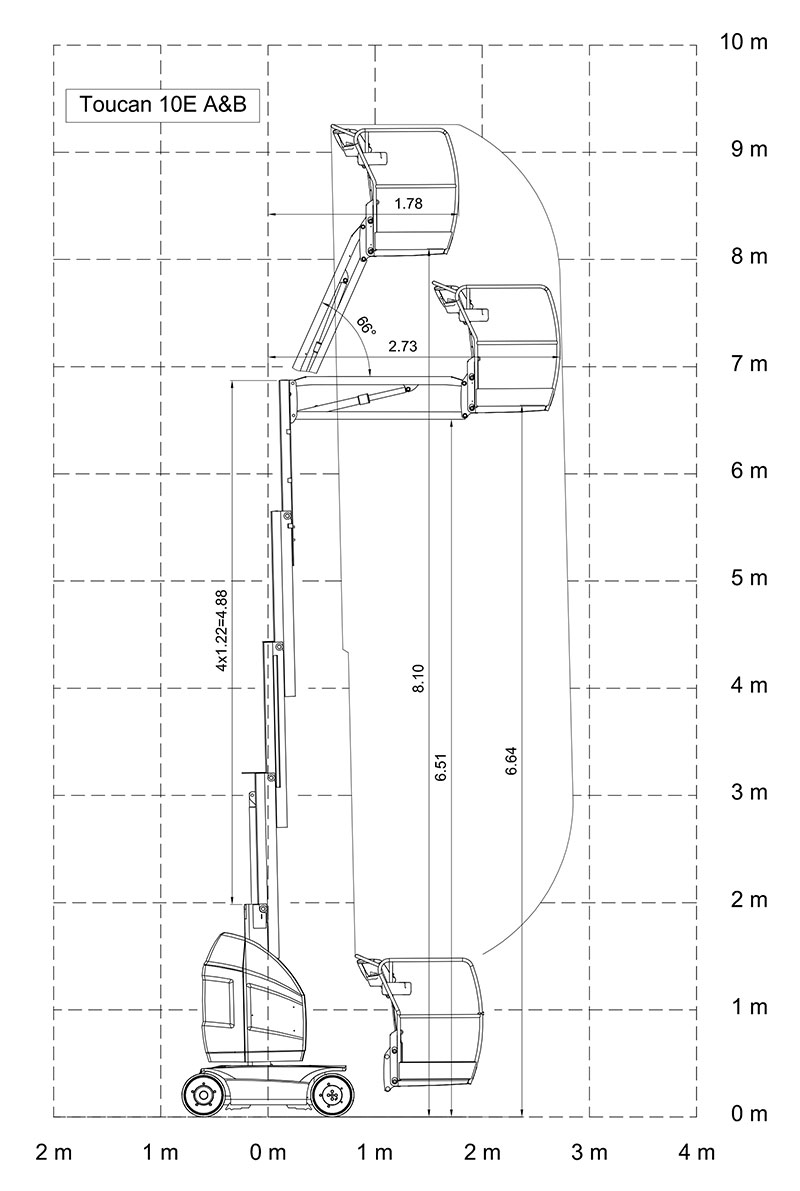

- Working Height: 10.10 m / 33.1 ft
- Working Outreach: 3.38 m / 11.1 ft
- Platform Capacity: 200 kg / 440.9 lb
- Up and Over Height: 6.51 m / 21.4 ft
| Drive Speed – Platform Elevated | 0.75 km/h / 0.5 mph |
| Drive Speed – Platform Lowered | 5.50 km/h / 3.4 mph |
| Gradeability – 2WD | 25 % |
| Platform Capacity | 200 kg / 440.9 lb |
| Swing | 345 Degrees |
| Swing Type | Non-Continuous |
| Turning Radius – Inside | 0.01 m / 0 in. |
| Turning Radius – Outside | 1.99 m / 6.5 ft |
| Jib – Range of articulation | 126 Degrees |
