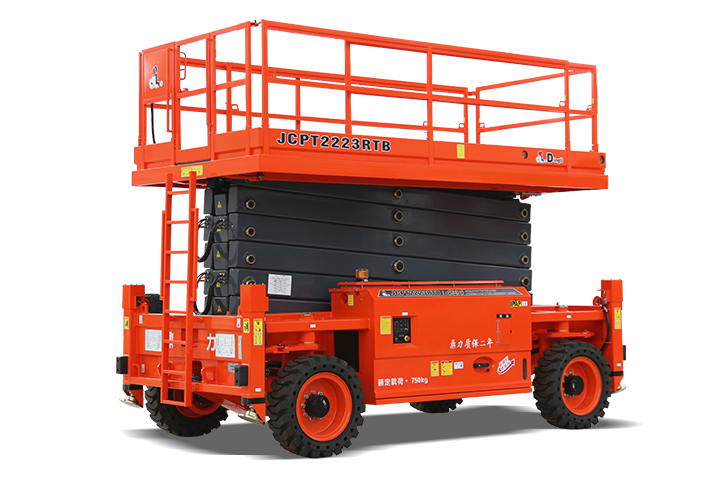

Scissor Lift – JCPT 2223RTB Diesel
PRODUCT HIGHLIGHTS
● The whole can drive normally when full loading of 750kg at full height
● 4.59m*2.25m large working platform, 2.7m one-key extension platform, can stop at any point
● Ground clearance up to 0.4m, strong passability
● 4×4 drive and steer, turning radius 1.25m/3.4m, can steer in a narrow space, great flexibility
● Equipped with special sealed hydraulic drive system, the gradeability is 40%
● One-key levelling function, automatic levelling, safe and stable
Keywords: MEWP, JCPT2223RTB
Contact Our Hire Desk
Description
PRODUCT HIGHLIGHTS
● The whole can drive normally when full loading of 750kg at full height
● 4.59m*2.25m large working platform, 2.7m one-key extension platform, can stop at any point
● Ground clearance up to 0.4m, strong passability
● 4×4 drive and steer, turning radius 1.25m/3.4m, can steer in a narrow space, great flexibility
● Equipped with special sealed hydraulic drive system, the gradeability is 40%
● One-key levelling function, automatic levelling, safe and stable
| ▼ Size | |
| Max. Working Height | 22.00m |
| Max. Platform Height | 20.00m |
| Overall Length | 4.95m |
| Overall Width | 2.46m |
| Overall Height(Rails Up) | 3.86m |
| Overall Height(Rails Down) | 3.00m |
| Platform Size(Length×Width) | 4.59×2.25m |
| Platform Extension Size | 2.70m |
| Ground Clearance(Stowed/Raised) | 0.40m |
| Wheelbase | 3.30m |
| Turning Radius(Inside/Outside) | 1.25m/3.40m |
| Tyres | 36×14-20 |
