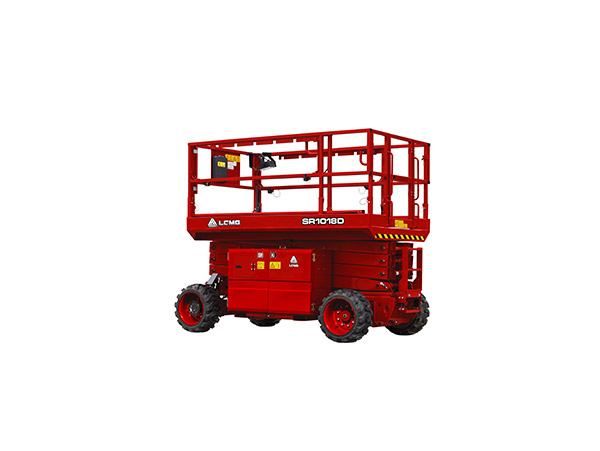

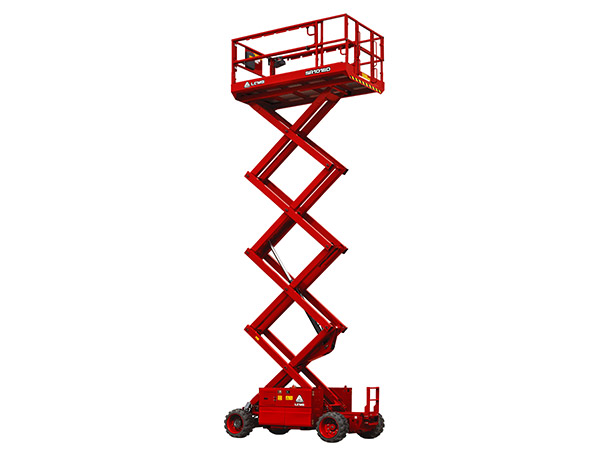

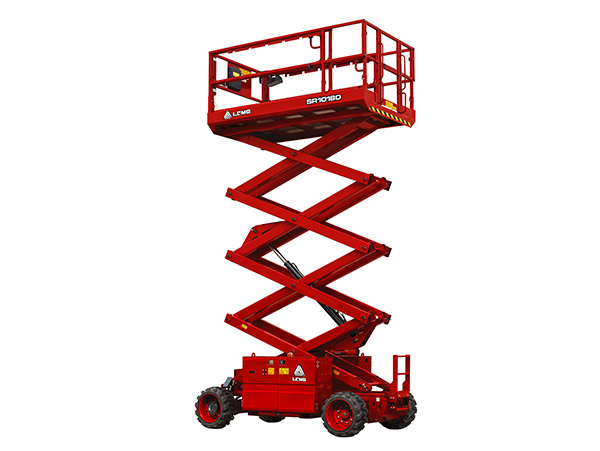

Scissor Lift – LGMG SR1018D Diesel
LGMG SR18D Series rough terrain scissor lifts are specifically built for tough construction sites with four-wheel drive and fantastic gradeability. High load capacities with compact design provide a great combination for the larger working area and greater maneuverability through rough terrain job sites.
- High capacity, large platform with compact design maximises productivity.
- Powerful diesel engine and four-wheel drive make the machine ideal for varying conditions.
- Oscillating axels with great gradeability provide better performance on rough terrain job sites.
- Optional hydraulic outriggers deliver better stability on uneven ground.
- Intelligent self-diagnostic system for quick troubleshooting.
Keywords: MEWP, LGMGSR1018D
Contact Our Hire Desk
Description
LGMG SR18D Series rough terrain scissor lifts are specifically built for tough construction sites with
four-wheel drive and fantastic gradeability. High load capacities with compact design provide a great
combination for the larger working area and greater maneuverability through rough terrain job sites.
- High capacity, large platform with compact design maximises productivity.
- Powerful diesel engine and four-wheel drive make the machine ideal for varying conditions.
- Oscillating axels with great gradeability provide better performance on rough terrain job sites.
- Optional hydraulic outriggers deliver better stability on uneven ground.
- Intelligent self-diagnostic system for quick troubleshooting.
|
Models |
SR1018D |
SR3369D |
|
Measurements |
||
|
Work Height Max. |
11.7m |
38.4ft |
|
A-Platform Height-Raised |
9.7m |
31.8ft |
|
B-Platform Height-Stowed |
1.41m |
4.62ft |
|
C-Platform Length |
2.79m |
9.15ft |
|
D-Platform Width |
1.6m |
5.25ft |
|
E-Overall Length |
3.12m |
10.2ft |
|
F-Overall Width |
1.79m |
5.81ft |
|
G-Overall Height-Guardrails Up |
2.55m |
8.36ft |
|
Overall Height-Guardrails Down |
1.89m |
6.2ft |
|
Extension Deck |
1.52m |
4.99ft |
|
Productivity |
||
|
Max. Platform Occupants (In/out) |
4/2 |
4/2 |
|
Platform Capacity |
454kg |
998.8lbs |
|
Platform Capacity-Extension Deck |
140kg |
308lbs |
|
Drive Height |
Full Height |
|
|
Gradeability-Stowed |
35% |
|
|
Turning Radius-Outside |
4.75m |
15.6ft |
|
Raise/Lower Speed |
39/46s |
|
|
Brakes |
Four-wheel Brake |
|
|
Drive Mode |
4×4 |
|
|
Tyres Type |
Foam-filled |
|
|
Tyres Size |
663×283mm |
26×12in |
|
Power |
||
|
Power Source |
Kubota D1105 18.5kw/24.8hp |
|
|
Fuel Tank Capacity |
53L/gal |
|
|
Hydraulic System |
||
|
Hydraulic Oil Capacity |
70L |
18.5gal |
|
Weight |
||
|
Machine Weight without Outriggers (CE/ANSI) |
3980kg |
8780lbs |
|
Machine Weight with Outriggers (Optional) |
4400kg |
9700lbs |
